Inverter Solis S6-EH3P10K02-NV-YD-L, WiFi Three-Phase Hybrid Low Voltage Inverter 10 years warranty IP66
10kW Inverter Solis S6-EH3P10K02-NV-YD-L, WiFi Three-Phase Hybrid Low Voltage Inverter 10 years warranty IP66 for photovoltaics
The inverter SolisS6-EH3P10K02-NV-YD-L is it a three-phase hybrid converter (inverter) low voltage with more economical LifePO4 batteries, designed for standalone or bi-connected photovoltaic systems. It has a nominal power of 10 kW and is suitable for applications in residential or small commercial systems. Hybrid inverters, such as this one, allow energy storage in batteries, making them ideal for systems that want to maximize self-consumption or ensure energy in the event of a power outage.
The S6-EH3P(8-15)K02-NV-YD-L series three-phase hybrid inverter is suitable for large-scale household PV energy storage systems with low battery voltage (48V). The products are compatible with high-power photovoltaic panels and suitable for a variety of brand lithium and lead-acid batteries. In addition, the product has a variety of features, such as compatible generators, UPS level switching, grid-connected photovoltaic system coupling networking, support for three-phase unbalanced load and half-wave load, etc. It helps households easily achieve zero-carbon energy needs.
Converter type
Hybrid
MPPT
2
Power converter
10 kW
Number of phases
3
Product details
Series name
S6-EH3P(8-15)K02-NV-YD-L
Series AC Power Range (kW)
8 - 15
Model name
S6-EH3P10K02-NV-YD-L
Maximum DC Power (kW)
16
Max. DC Voltage (V)
1000
Max. DC current (A)
20/40
MPP voltage range (V)
200 - 850
Strings per single MPPT
3
Maximum AC power (kW)
10
Rated AC Voltage (V)
380/400
Maximum AC current (A)
15.2/14.4
Rated AC current (A)
15.2/14.4
Frequency (Hz)
50/60
Power factor
1
Maximum efficiency (%)
97.6
Euro Efficiency (%)
97
Operating temperature range (°C)
-40 ~ 60
Protection class
IP66K
Appearance
LCD + Bluetooth + APP
Size
Height (mm)
660
Width (mm)
430
Depth (mm)
295
Weight (kg)
42
Inverter Solis S6-EH3P10K02-NV-YD-L, WiFi Three-Phase Hybrid Low Voltage Inverter 10 years warranty IP66
The Solis S6-EH3P10K02-NV-YD-L is a three-phase low voltage hybrid inverter, which is suitable for use in photovoltaic systems. This inverter has built-in WiFi, which allows easy monitoring and management of the system via an application on a smartphone or tablet.
Basic features:
Three-phase Hybrid Inverter: Suitable for systems requiring three-phase power supply.
Capacity: 10 kW, ideal for medium-sized photovoltaic systems.
Wi-Fi Connectivity: Allows remote monitoring and management of the system.
Warranty: 10-year warranty, indicating the manufacturer's confidence in the quality and reliability of the product.
Protection Class IP66: Dust and moisture resistant, suitable for outdoor installation.
Advantages:
Efficiency: High energy conversion efficiency, ensuring maximization of energy production.
Flexibility: Supports various system configurations, including battery-powered hybrid systems.
Reliability: With a 10-year warranty, this inverter is designed for long-term and reliable operation.
Easy Installation and Maintenance: The IP66 rating makes the inverter suitable for outdoor installation, while the WiFi feature facilitates monitoring and maintenance.
Applications:
Domestic use: Ideal for households that want to reduce their dependence on the public electricity grid.
Professional use: Suitable for small and medium-sized businesses that wish to reduce their energy costs and increase their autonomy.
Three-phase low voltage energy storage inverter
Top features
10 seconds 200% overload capacity
Multiple inverters can work together to form a microgrid
Generator compatible to extend backup duration during a power outage
Supports dual redundant ports for intelligent control of critical and non-critical loads
Supports unbalanced and half-wave loads on both Grid and Backup ports
Supports a maximum input current of 20A, making it ideal for all high-power photovoltaic modules of any brand
Ensures excellent power stability, keeping the load unaffected by weak grid or generator power fluctuations
The DC side of the battery can handle a maximum charge/discharge current of up to 290A, allowing it to store more excess energy generated by photovoltaic systems
V-TAC Inverter Photovoltaic Solis Three-Phase Hybrid On-Grid/Off-Grid 10kW (SKU 12292) is the ideal solution for those who wish to make the most of solar energy, ensuring energy autonomy and high efficiency.
Superior Performance and Flexibility with Dual MPPT
Equipped with dual MPPT, this inverter allows for optimal management of solar energy, ensuring maximum performance even in variable sunshine conditions. The three-phase 10kW output is ideal for residential, commercial and industrial applications, offering a stable and reliable power supply.
Energy Autonomy with Hybrid On-Grid/Off-Grid Operation
The inverter's hybrid mode allows for both On-Grid and Off-Grid operation. This means you can store excess energy in batteries during the day and use it when you need it, reducing your dependence on the grid and ensuring energy autonomy.
Reliability and Durability with a 10-Year Warranty
With an IP66 protection rating, the inverter is resistant to harsh environmental conditions, making it suitable for outdoor use. The 10-year warranty underlines the reliability and long-term performance of the product, giving you peace of mind and confidence in your investment.
The V-TAC Inverter Photovoltaic Solis Three-Phase Hybrid On-Grid/Off-Grid 10kW (SKU 12292) has the following technical characteristics:
The small series of Victron inverters continues to use the proven solution of the complete bridge with a toroidal transformer. The new series, however, has a new casing, new electronics and new software. The units consist of a steel frame with a plastic cover, while the electronic management of the inverters provides improved dynamic output voltage stability. Last but not least is the range of communication and feature configuration options offered by Victron using the V.Direct software.
Fully programmable Victron inverters, developed for professional use. The Phoenix range of inverters is suitable for the widest range of applications. The design criteria were to produce a pure sine inverter with optimized efficiency but no performance compromises. Using HF hybrid technology, the result is an excellent quality product with compact dimensions, light in weight and able to provide power, without problems, to any load.
The Victron Energy Phoenix series are pure sine converters, top quality construction and very high efficiency. With the application of Hybrid HF Technology, these inverters succeed in successfully combining the highest degree of efficiency with the ability to support loads with high starting current without problems. Suitable for autonomous systems and in cases where uninterruptible power supply is needed.
The small series of Victron inverters continues to use the proven solution of the complete bridge with a toroidal transformer. The new series, however, has a new casing, new electronics and new software. The units consist of a steel frame with a plastic cover, while the electronic management of the inverters provides improved dynamic output voltage stability. Last but not least is the range of communication and feature configuration options offered by Victron using the V.Direct software.
The Quattro can be connected to two independent AC power supplies, for example to a ground power source and to one generator, or to two generators. The Quattro automatically connects to the active power source. Quattro prevents overloading of a source with limited AC voltage. First, the battery charge decreases automatically when there may be an overload. The second level increases the power of a generator or secondary supply from a ground source with battery power.
Fully programmable Victron inverters, developed for professional use. The Phoenix range of inverters is suitable for the widest range of applications. The design criteria were to produce a pure sine inverter with optimized efficiency but no performance compromises. Using HF hybrid technology, the result is an excellent quality product with compact dimensions, light in weight and able to provide power, without problems, to any load.
The Victron Phoenix 48/250 VE.Direct (MPN PIN482510200) is a small sinusoidal inverter with a constant output of 200W. Converts 48V DC to 230V AC with pure sine wave, suitable for supply even to sensitive electronic devices. Its level of performance is very high and thanks to the integrated Eco-Mode function one of the best in this category.
Through the VE.Direct communication port and optional equipment it is possible to connect the inverter to a computer or smartphone that allows the configuration of various system parameters, such as the switch on and off the voltage at low battery charge. Other settings such as output frequency or voltage, as well as a bipolar contact-alarm are just some of the features of this converter.

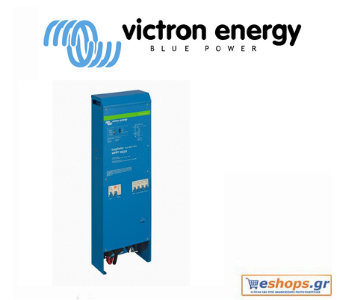

Victron Easy Solar 24/1600 / 40-16 MPPT 100/50-Inverter Converter. Victron inverters are compatible with many solar systems. For grid-connected systems, they can operate with one or two panels as well as with a battery. They also work with off-grid solar systems.
